GATE EC 2023 Set 1 Q9 — Electronic Devices

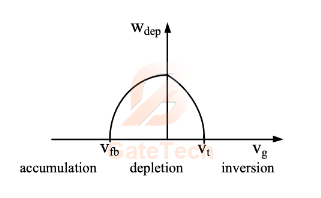

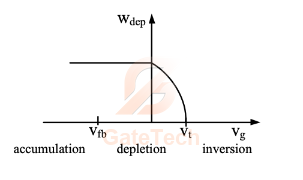

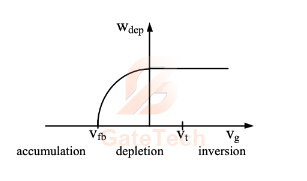

For a $\text{MOS}$ capacitor, $\text{V}_{\mathrm{fb}}$ and $\text{V}_{\mathrm{t}}$ are the flat-band voltage and the threshold voltage, respectively. The variation of the depletion width $\left(\mathrm{W}_{\mathrm{dep}}\right)$ for varying gate voltage $\left(\text{V}_g\right)$ is best represented by
