GATE EC 2022 Set 1 Q13 — LTI Systems

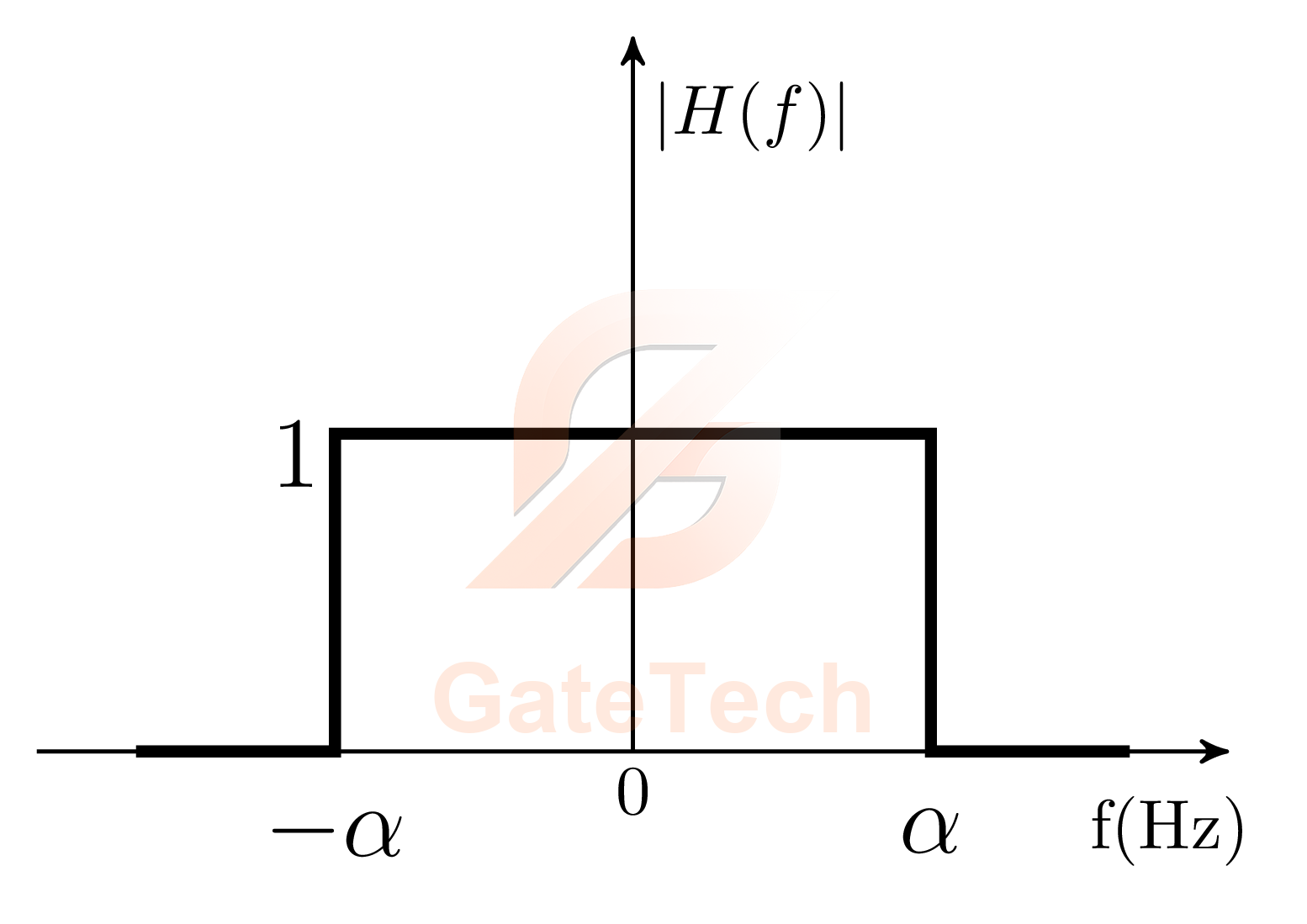

The frequency response $H(f)$ of a linear time-invariant system has magnitude as shown in the figure.

Statement $\text{I}:$ The system is necessarily a pure delay system for inputs which are bandlimited to $- \alpha \leq f \leq \alpha.$

Statement $\text{II}:$ For any wide-sense stationary input process with power spectral density $S_{x}(f),$ the output power spectral density $S_{y}(f)$ obeys $S_{y}(f) = S_{x}(f)$ for $- \alpha \leq f \leq \alpha.$

Which one of the following combinations is true?

View answer

Answer: C

Worked explanation not available yet.
