GATE EC 2022 Set 1 Q12 — Control Systems

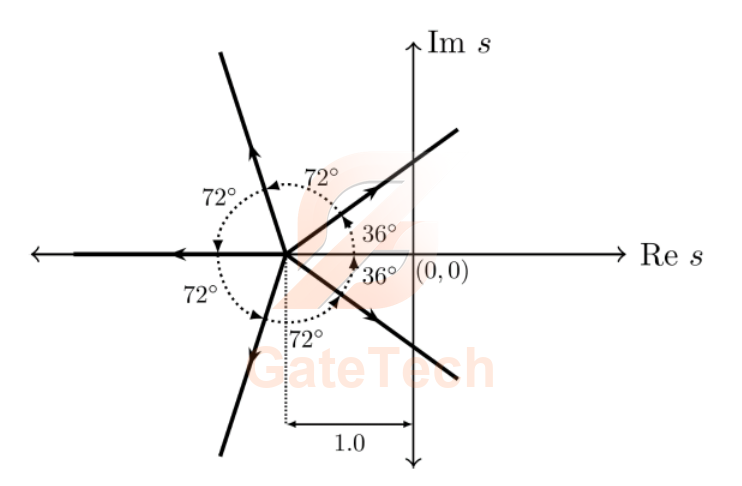

The root-locus plot of a closed-loop system with unity negative feedback and transfer function $KG(s)$ in the forward path is shown in the figure. Note that $K$ is varied from $0$ to $\infty.$

Select the transfer function $G(s)$ that results in the root-locus plot of the closed-loop system as shown in the figure.

View answer

Answer: A

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction

GATE EC · 2026
Consider the differential equation $\dot{\vec{w}}=A \vec{w}$ , with $\vec{w}(t=0)=\left[\begin{array}{l}1 \\ 1\end{array}\right]$ . If $\vec{w}(t)=e^{t} \vec{u}_{x}+e^{-2 t} \vec{u}_{y}$ be the solution to the equation where $\vec{u}_{x}$ and $\vec{u}_{y}$ are unit vectors along the positive $x$ and $y$ axes respectively, then which of the …
MCQ · 1 mark
GATE EC · 2026
A control system is shown in the Figure. Which option represents the correct transfer function of the system?
MCQ · 1 mark
GATE EC · 2026
For the control system shown in the Figure, the transfer function of a plant, $G(s)=\frac{1}{(s+1)(s+2)}$ is connected in cascade with a compensator $C(s)=K(s+\alpha)$ , where $K$ and $\alpha$ are positive real valued constants. Which of the following pairs $(K, \alpha)$ represent the correct values for the closed loop system to have poles at …
MCQ · 2 marks
GATE EC · 2026
The state and output equations for a control system are: $\begin{array}{c} \dot{x}=\left[\begin{array}{cc} -4 & -1.5 \\ 4 & 0 \end{array}\right] x+\left[\begin{array}{l} 2 \\ 0 \end{array}\right] u \\ y=\left[\begin{array}{ll} 1.5 & 0.625 \end{array}\right] x \end{array}$ Which of the following expressions correctly represents the transfer …
MCQ · 2 marks
GATE EC · 2026
Consider the unity negative feedback control system shown in the Figure. The value of gain $K(>0)$ at which the given system will remain marginally stable is $\_\_\_\_$ . (Answer in integer)
NAT · 2 marks
GATE EC · 2025
The Nyquist plot of a system is given in the figure below. Let $\omega_{P}, \omega_{Q}, \omega_{R}$ , and $\omega_{S}$ be the positive frequencies at the points $\boldsymbol{P}, \boldsymbol{Q}, \boldsymbol{R}$ , and $\boldsymbol{S}$ , respectively. Which one of the following statements is TRUE?
MCQ · 1 mark
