GATE EC 2022 Set 1 Q11 — Control Systems

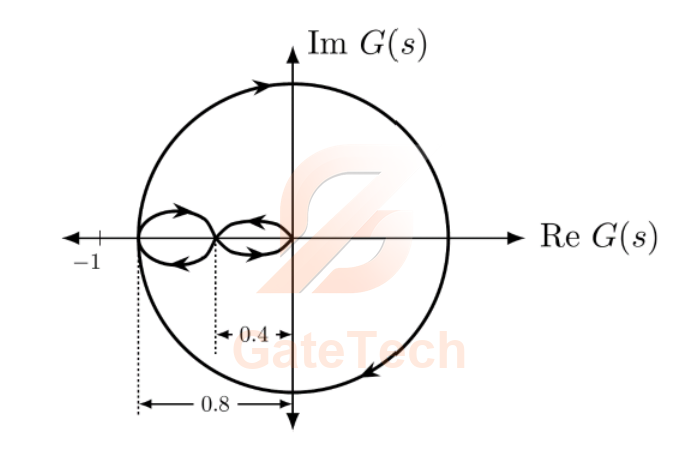

Consider a closed-loop control system with unity negative feedback and $KG(s)$ in the forward path. where the gain $K = 2.$ The complete Nyquist plot of the transfer function $G(s)$ is shown in the figure. Note that the Nyquist contour has been chosen to have the clockwise sense. Assume $G(s)$ has no poles on the closed right-half of the complex plane. The number of poles of the closed-loop transfer function in the closed right-half of the complex plane is ________________.
