Official PYQ · 2020Set 1 · Q55LTI SystemsNAT2 marks

GATE EC 2020 Set 1 Q55 — LTI Systems

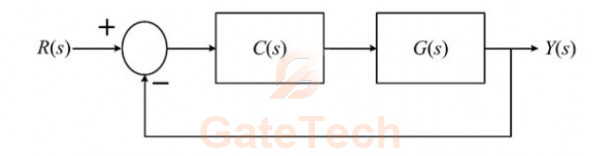

Consider the following closed loop control system

where $G\left ( s \right )=\dfrac{1}{s\left ( s+1 \right )}$ and $C\left ( s \right )=K\dfrac{s+1}{s+3}$ . If the steady state error for a unit ramp input is $0.1$ , then the value of $K$ is ______________.

View answer

Answer: 30:30

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
