Official PYQ · 2020Set 1 · Q14LTI SystemsMCQ1 mark

GATE EC 2020 Set 1 Q14 — LTI Systems

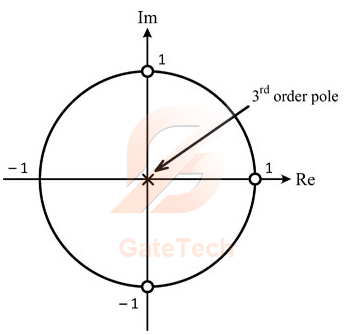

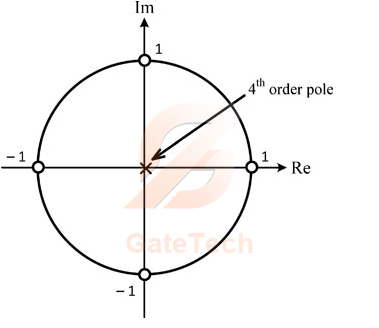

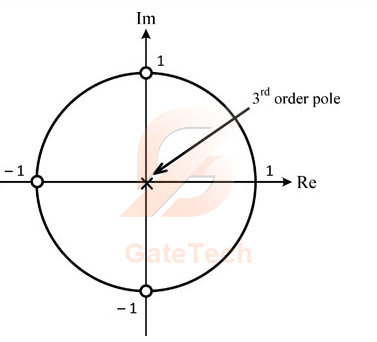

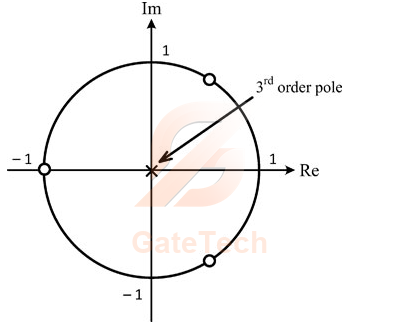

Which one of the following pole-zero plots corresponds to the transfer function of an $\text{LTI}$ system characterized by the input-output difference equation given below?

$y\left [ n \right ]=\sum ^{3}_{k=0}\left ( -1 \right )^{k}x\left [ n-k \right ]$

View answer

Answer: A

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
