Official PYQ · 2019Set 1 · Q55Analog CommunicationsNAT2 marks

GATE EC 2019 Set 1 Q55 — Analog Communications

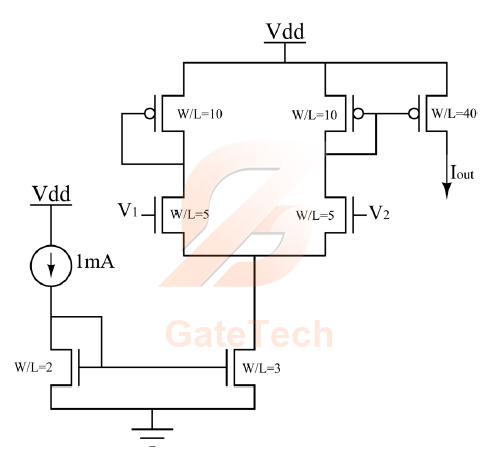

In the circuit shown, $V_{1}=0$ and $V_{2}=V_{dd}.$ The other relevant parameters are mentioned in the figure. Ignoring the effect of channel length modulation and the body effect, the value of $I_{out}$ is _________ $mA$ (rounded off to $1$ decimal place).

View answer

Answer: 5.9:6.1

Worked explanation not available yet.
