Official PYQ · 2019

GATE EC 2019 Set 1 Q48 — Plane Waves and Properties

Explain with AI

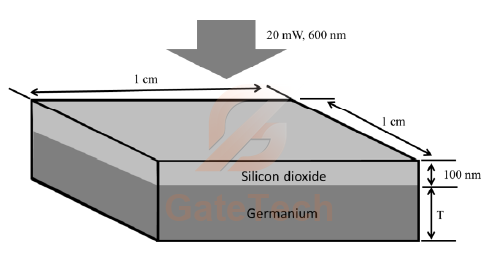

A Germanium sample of dimensions 1 cm×1 cm1\: cm \times 1\: cm is illuminated with a 20 mW,20\:mW, 600 nm600\: nm laser light source as shown in the figure. The illuminated sample surface has a 100 nm100\: nm of loss-less Silicon dioxide layer that reflects one-fourth of the incident light. From the remaining light, one-third of the power is reflected from the Silicon dioxide-Germanium interface, one-third is absorbed in the Germanium layer, and one-third is transmitted through the other side of the sample. If the absorption coefficient of Germanium at 600 nm600\: nm is 3×104 cm−13 \times 10^4\: cm^{-1} and the bandgap is 0.66 eV,0.66\: eV, the thickness of the Germanium layer, rounded off to 33 decimal places, is ________ μm.\mu m.

View answer

Answer: 0.230:0.232

Worked explanation not available yet.
