Official PYQ · 2018Set 1 · Q42LTI SystemsNAT2 marks

GATE EC 2018 Set 1 Q42 — LTI Systems

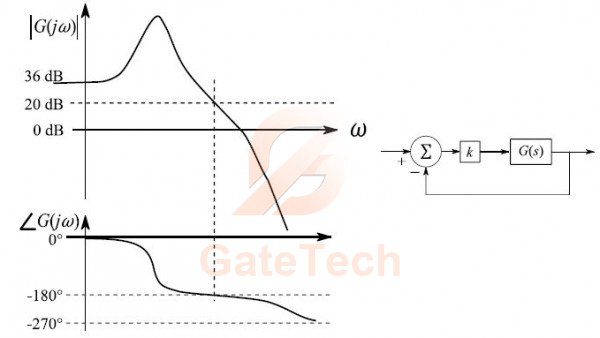

The figure below shows the Bode magnitude and phase plots of a stable transfer function $G\left ( s \right )=\dfrac{n_{0}}{s^{3}+d_{2}s^{2}+d_{1}s+d_{0}}.$

Consider the negative unity feedback configuration with gain $k$ in the feedforward path. The closed loop is stable for $k < k_{0}.$ The maximum value of $k_{0}$ is _________.

View answer

Answer: 0.1:0.1

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
