GATE EC 2018 Set 1 Q2 — Electronic Devices

Explain with AI

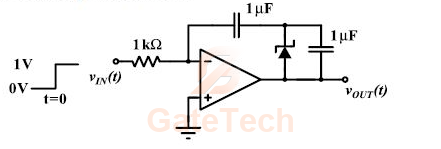

In the circuit shown below, the op-amp is ideal and Zener voltage of the diode is 2.5 volts2.5\: volts. At the input, unit step voltage is applied, i.e. vIN(t)=u(t) voltsv_{IN}\left ( t \right ) = u\left ( t \right )\:volts. Also, at t=0t = 0, the voltage across each of the capacitors is zero.



The time tt, in milliseconds, at which the output voltage vOUTv_{OUT} crosses −10 V-10\: V is

Choose one option
View answer

Answer: C

Worked explanation not available yet.
