Official PYQ · 2017Set 1 · Q51Random ProcessesMCQ2 marks

GATE EC 2017 Set 1 Q51 — Random Processes

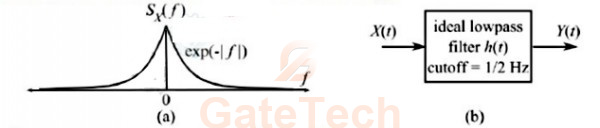

Let $X(t)$ be a wide sense stationary random process with the power spectral density $S_{X}(f)$ as shown in Figure (a), where $f$ is in Hertz $(Hz)$ . The random process $X(t)$ is input to an ideal lowpass filter with the frequency response

$H(f) = \begin{cases} 1, & \mid f \mid \leq \frac{1}{2} Hz \\ 0, &\mid f \mid > \frac{1}{2} Hz \end{cases}$

as shown in Figure(b).The output of the lowpass filter is $Y(t)$ .

Let $E$ be the expectation operator and consider the following statement:

$E(X(t))=E(Y(t))$
$E(X^{2}(t))=E(Y^{2}(t))$
$E(Y^{2}(t))=2$

Select the correct option:

View answer

Answer: A

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction

GATE EC · 2025Random Processes
Consider a real-valued random process $f(t)=\sum_{n=1}^{N} a_{n} \: p(t-n T),$ where $T>0$ and $N$ is a positive integer. Here, $p(t)=1$ for $t \in[0,0.5 T]$ and $0$ otherwise. The coefficients $a_{n}$ are pairwise independent, zero-mean unit-variance random variables. Read the following statements about the random process and choose the …
MCQ · 2 marks
GATE EC · 2024Random Processes
A white Gaussian noise $w(t)$ with zero mean and power spectral density $\frac{N_{0}}{2}$ , when applied to a first-order RC low pass filter produces an output $n(t)$ . At a particular time $t=t_{k}$ , the variance of the random variable $n\left(t_{k}\right)$ is $\_\_\_\_\_\_\_$ .
MCQ · 1 mark
GATE EC · 2023Random Processes
Let $X(t)$ be a white Gaussian noise with power spectral density $\frac{1}{2} \mathrm{~W} / \mathrm{Hz}$ . If $X(t)$ is input to an LTI system with impulse response $e^{-t} u(t)$ . The average power of the system output is _____________ $\mathrm{W}$ (rounded off to two decimal places).
NAT · 2 marks
GATE EC · 2021Random Processes
The autocorrelation function $R_{X}\left ( \tau \right )$ of a wide-sense stationary random process $X(t)$ is shown in the figure. The average power of $X(t)$ is ________________
NAT · 1 mark
GATE EC · 2019Random Processes
Let a random process $Y(t)$ be described as $Y(t)=h(t) \ast X(t)+Z(t),$ where $X(t)$ is a white noise process with power spectral density $S_{x}(f)=5$ W/Hz. The filter $h(t)$ has a magnitude response given by $\mid H(f) \mid =0.5$ for $-5\leq f\leq5,$ and zero elsewhere. $Z(t)$ is a stationary random process, uncorrelated with $X(t)$ , with …
NAT · 2 marks
GATE EC · 2018Random Processes
Consider a white Gaussian noise process $\text{N(t)}$ with two-sided power spectral density $S_{N}\left ( f \right )=0.5\:W/Hz$ as input to a filter with impulse response $0.5e^{-t^{2}/2}$ (where $t$ is in seconds) resulting in output $Y(t)$ . The power in $Y(t)$ in watts is
MCQ · 2 marks
