Official PYQ · 2017

GATE EC 2017 Set 1 Q18 — Control Systems

Explain with AI

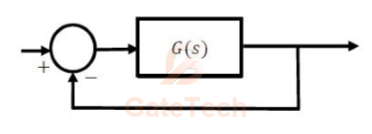

The open loop transfer function G(s)=(s+1)sp(s+2)(s+3)G(s)=\frac{(s+1)}{s^{p}(s+2)(s+3)} where pp is an integer, is connected in unity feedback configuration as shown in figure.

Given that the steady state error is zero for unit step input and is 66 for unit ramp input, the parameter pp is__________.

View answer

Answer: 0.99:1.01

Worked explanation not available yet.
