GATE EC 2016 Set 3 Q12 — Electronic Devices

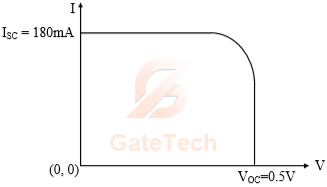

The figure shows the $I-V$ characteristics of a solar cell illuminated uniformly with solar light of power $100\ mW/cm^2$ . The solar cell has an area of $3\ cm^2$ and a fill factor of $0.7$ . The maximum efficiency (in $\%$ ) of the device is _______

View answer

Answer: 20.5:21.5

Worked explanation not available yet.
