Official PYQ · 2016Set 2 · Q25Transmission LinesNAT1 mark

GATE EC 2016 Set 2 Q25 — Transmission Lines

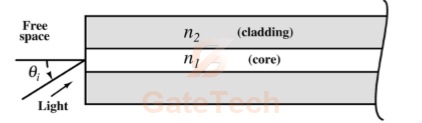

Light from free space is incident at an angle $\theta _{i}$ to the normal of the facet of a step-index large core optical fibre. The core and cladding refractive indices are $n _{1}=1.5$ and $n _{2}=1.4$ , respectively.

The maximum value of $\theta _{i}$ (in degrees) for which the incident light will be guided in the core of the fibre is _________

View answer

Answer: 32:33

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
