GATE EC 2016 Set 2 Q16 — Electronic Devices

Explain with AI

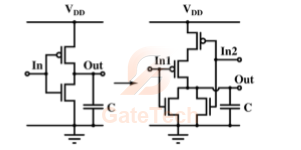

Transistor geometries in a CMOSCMOS inverter have been adjusted to meet the requirement for worst case charge and discharge times for driving a load capacitor CC. This design is to be converted to  that of a NORNOR circuit in the same technology, so that its worst case charge and discharge times while driving the same capacitor are similar. The channel lengths of all transistors are to be kept unchanged. Which one of the following statements is correct?



Choose one option
View answer

Answer: B

Worked explanation not available yet.
