GATE EC 2015 Set 3 Q25 — Transmission Lines

Explain with AI

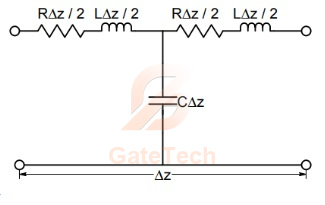

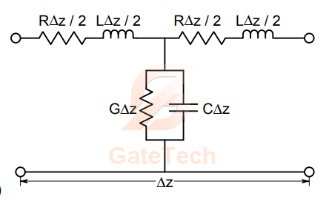

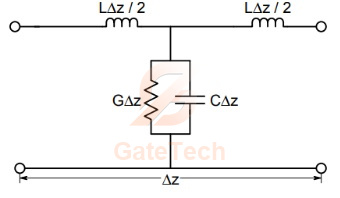

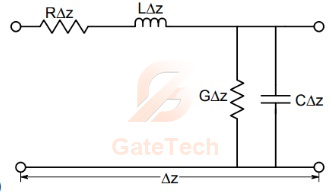

A coaxial cable is made of two brass conductors. The spacing between the conductors is filled with Teflon (εr=2.1,tan⁡δ=0).(\varepsilon_{r} = 2.1, \tan \delta = 0). Which one of the following circuits can represent the lumped element model of a small piece of this cable having length Δz\Delta z?

Choose one option
View answer

Answer: B

Worked explanation not available yet.
