Official PYQ · 2014Set 4 · Q48LTI SystemsNAT2 marks

GATE EC 2014 Set 4 Q48 — LTI Systems

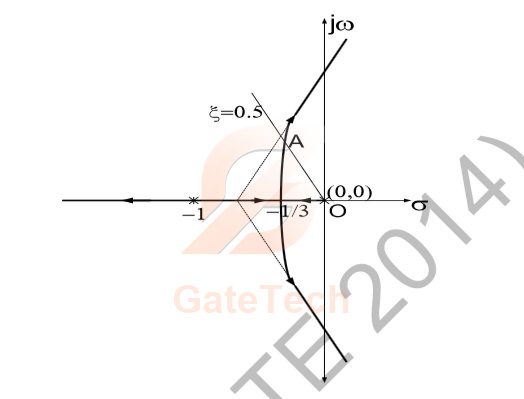

The characteristic equation of a unity negative feedback system is $1+KG(s)=0$ . The open loop transfer function $G(s)$ has one pole at $0$ and two poles at $-1$ . The root locus of the system for varying $K$ is shown in the figure.

The constant damping ratio line, for $\xi = 0.5$ , intersects the root locus at point A. The distance from the origin to point A is given as $0.5$ . The value of $K$ at point A is ________.

View answer

Answer: 0.32:0.41

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction

GATE EC · 2026LTI Systems
The response of a discrete time system $y[n]$ obeys the following relation: $y[n]=\frac{5}{6} y[n-1]-\frac{1}{6} y[n-2]+x[n] .$ The input to the system is $x[n]=\delta[n]-\frac{1}{3} \delta[n-1]$ . Which of the following options is TRUE for $y[n]$ ?
MCQ · 1 mark
GATE EC · 2026LTI Systems
Consider the discrete time system (S) with input $x[n]$ and output $y[n]$ as shown in the Figure. The two sub-systems represented by their impulse responses $h_{1}[n]$ and $h_{2}[n]$ are linear and time invariant. Which of the following statements is necessarily TRUE?
MCQ · 2 marks
GATE EC · 2025LTI Systems
Consider the discrete-time system below with input $x[n]$ and output $y[n]$ . In the figure, $h_{1}[n]$ and $h_{2}[n]$ denote the impulse responses of LTI Subsystems $1$ and $2$ , respectively. Also, $\delta[n]$ is the unit impulse, and $b>0$ . Assuming $h_{2}[n] \neq \delta[n]$ , the overall system (denoted by the dashed box) is …
MCQ · 1 mark
GATE EC · 2024LTI Systems
A causal and stable $\text{LTI}$ system with impulse response $h(t)$ produces an output $y(t)$ for an input signal $x(t)$ . A signal $x(0.5 t)$ is applied to another causal and stable $\text{LTI}$ system with impulse response $h(0.5 t)$ . The resulting output is $\_\_\_\_\_\_\_$ .
MCQ · 1 mark
GATE EC · 2024LTI Systems
For a causal discrete-time LTI system with transfer function $H(z)=\frac{2 z^{2}+3}{\left(z+\frac{1}{3}\right)\left(z-\frac{1}{3}\right)}$ which of the following statements is/are true?
MSQ · 1 mark
GATE EC · 2023LTI Systems
Consider a system with input $x(t)$ and output $y(t)=x\left(e^{t}\right)$ . The system is
MCQ · 1 mark
