Official PYQ · 2014

GATE EC 2014 Set 3 Q39 — Electronic Devices

Explain with AI

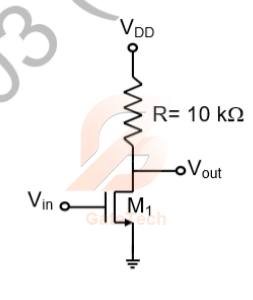

For the MOSFET M1M_{1} shown in the figure, assume W/L=2W/L= 2, VDD=2.0 VV_{DD}= 2.0 \: V, μnCox=100μA/V2\mu _{n}C_{ox}= 100\mu A/V^{2} and VTH=0.5 VV_{TH}= 0.5 \: V. The transistor M1M_{1} switches from saturation region to linear region when  VinV_{in}(in  VoltsVolts) is ____________.



View answer

Answer: 1.4:1.6

Worked explanation not available yet.
