GATE EC 2014 Set 3 Q25 — Transmission Lines

Explain with AI

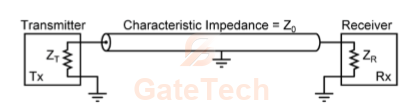

In the following figure, the transmitter TxTx sends a wideband modulated RFRF signal via a coaxial  cable to the receiver RxRx. The output impedance ZTZ_{T} of TxTx, the characteristic impedance Z0Z_{0} of the cable and the input impedance ZRZ_{R} of RxRx are all real.





Which one of the following statements is TRUE about the distortion of the received signal due to impedance mismatch?

Choose one option
View answer

Answer: C

Worked explanation not available yet.
