Official PYQ · 2014Set 1 · Q48Differential EquationsMCQ2 marks

GATE EC 2014 Set 1 Q48 — Differential Equations

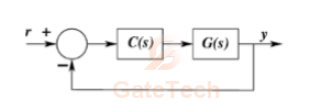

For the following feedback system $G(s) = \dfrac{1}{(s+1)(s+2)}.$ The $2\%$ -settling time of the step response is required to be less than $2$ seconds.

Which one of the following compensators $C(s)$ achieves this?

View answer

Answer: C

Worked explanation not available yet.
