Official PYQ · 2014Set 1 · Q9MCQ1 mark

GATE EC 2014 Set 1 Q9 — Electronic Devices

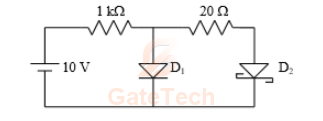

In the figure, assume that the forward voltage drops of the $PN$ diode $D_{1}$ and Schottky diode $D_{2}$ are $0.7\: V$ and $0.3\: V,$ respectively. If ON denotes conducting state of the diode and OFF denotes non-conducting state of the diode, then in the circuit,

View answer

Answer: D

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
