Official PYQ · 2013

GATE EC 2013 Set 1 Q35 — Electronic Devices

Explain with AI

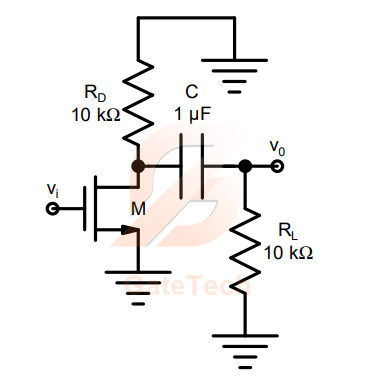

The ac schematic of an NMOSNMOS common-source stage is shown in the figure below, where part of the biasing circuits has been omitted for simplicity. For the nn-channel  MOSFET M,MOSFET\: M, the transconductance gm=1  mA/V,g_{m} = 1\; mA/V, and body effect and channel length modulation effect are to be neglected. The lower cutoff frequency in HzHz of the circuit is approximately at

Choose one option
View answer

Answer: A

Worked explanation not available yet.
