Official PYQ · 2012Set 1 · Q40Transmission LinesMCQ2 marks

GATE EC 2012 Set 1 Q40 — Transmission Lines

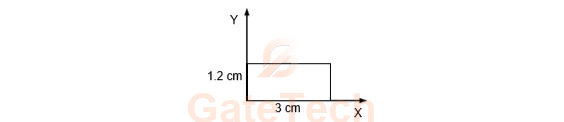

The magnetic field along the propagation direction inside a rectangular waveguide with the cross-section shown in the figure is

$H_Z=3\:\cos(2.094\times10^2x)\:\cos(2.618\times10^2y)\:\cos(6.283\times10^{10}t-\beta z)$

The phase velocity $v_p$ of the wave inside the waveguide satisfies

Marks were awarded to all candidates for this question. It is not scored as a normal quiz.

View answer

Marks to all

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
