Official PYQ · 2012Set 1 · Q39Analog CommunicationsMCQ2 marks

GATE EC 2012 Set 1 Q39 — Analog Communications

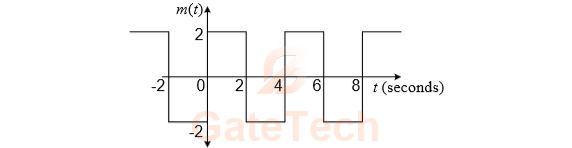

The signal $m(t)$ as shown is applied both to a phase modulator (with $k_p$ as the phase constant) and a frequency modulator (with $k_f$ as the frequency constant) having the same carrier frequency.

The ratio $\frac{k_p}{k_f}$ (in $rad/Hz$ ) for the same maximum phase deviation is

View answer

Answer: B

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026
