Official PYQ · 2004Set 1 · Q85Transmission LinesMCQ1 mark

GATE EC 2004 Set 1 Q85 — Transmission Lines

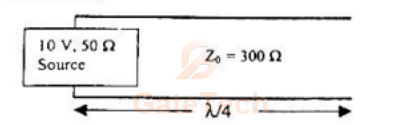

Consider a $300 \; \Omega$ , quarter-wave long (at $1 \; \mathrm{GHz}$ ) transmission line as shown in the figure. It is connected to a $10 \mathrm{~V}, 50 \; \Omega$ source at one end and is left open circuited at the other end. The magnitude of the voltage at the open circuit end of the line is

View answer

Answer: D

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
